Product Description
ASSAN AS30 8-26V Sound Module Dual-tone switching, Turbojet sound effect, USB sound changer for RC Plane
Specification:
Working voltage: 8-26V (2S-6S Lipo)
Maximum output power: 30W
Dimensions: 60mm x 30mm x 7mm
Weight: 22g (module) / 127g (two vibration speakers)
If players want to download their favorite sounds, they can go online to find some suitable sound files. Wav and MP3 suffixes are both acceptable.

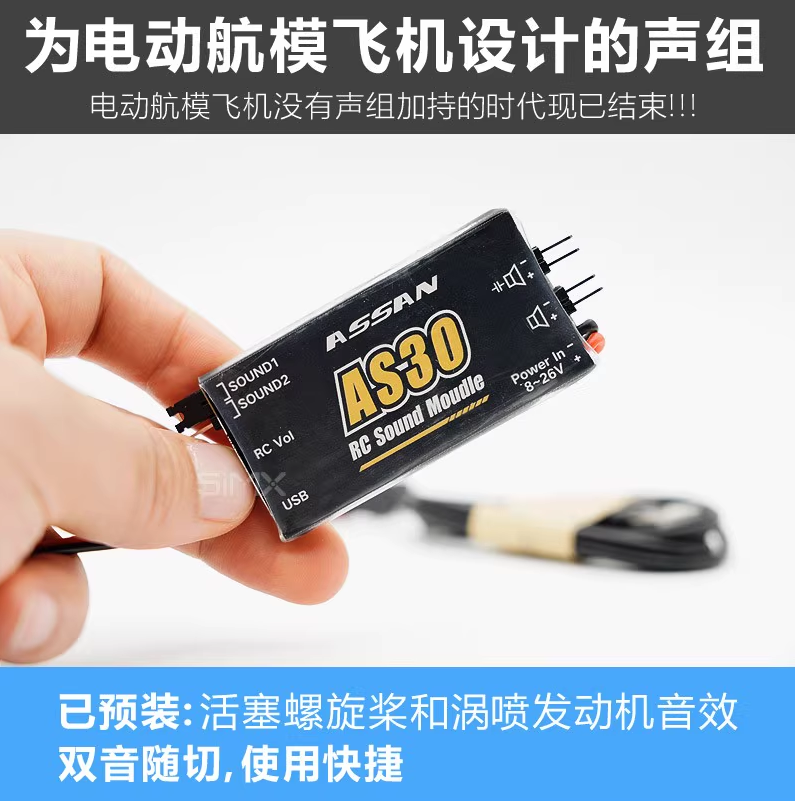

Pre-installed: piston propeller and turbojet engine sound effects, dual-tone switching, quick to use
The beginning of a new era AS30 is a sound module developed specifically for electric lifelike model aircraft, which can output realistic engine aerodynamic sound effects*. It is powerful enough to allow ground personnel to hear the sound of a real fuel engine aircraft flying over even in the sky. The launch of AS30 heralds the beginning of a new era for electric lifelike aircraft models. Let us take a step further on the road of infinitely close to reality!
Feature:
- Pre-installed piston propeller and turbojet engine sounds, switchable.
- Throttle synchronized sound control makes the sound effect more realistic.
- High output power and good sound effect.
- Small size, light weight, easy to install,
- Sound samples can be updated, replaced, and customized,
- Power input reverse polarity protection, output short circuit protection, overheating protection to avoid damage.
Easy to use
Can be connected to the throttle channel via a Y line (this method is the easiest)
Can select an idle channel to associate with the throttle channel in a mixed control form (the remote control must have this function to support it)

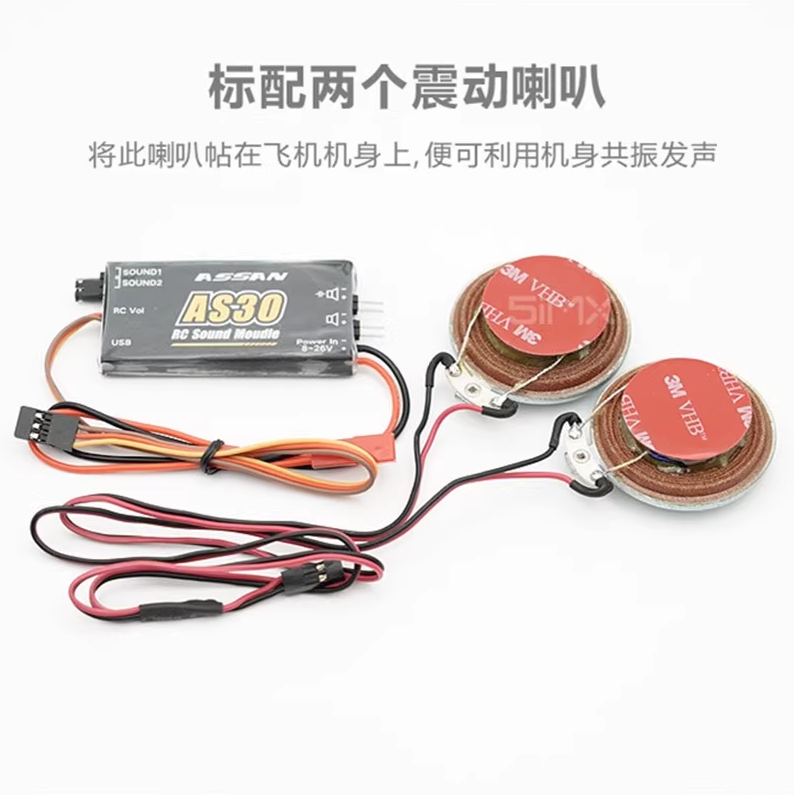

Connect the power supply (8-26V) and the speaker (the vibration speaker is the standard speaker for the sound group) to start a pleasant experience!

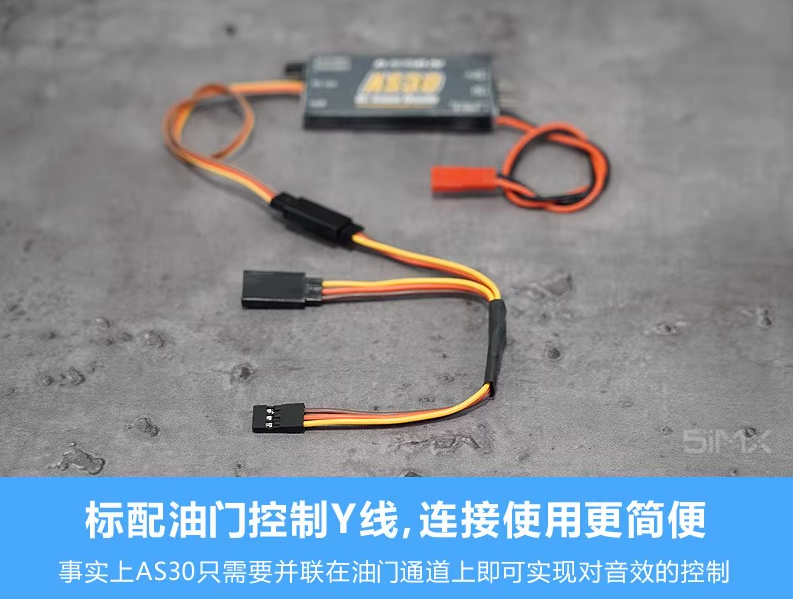

The standard throttle control Y line makes it easier to connect and use. In fact, the AS30 only needs to be connected in parallel to the throttle channel to achieve the control of the sound effect.

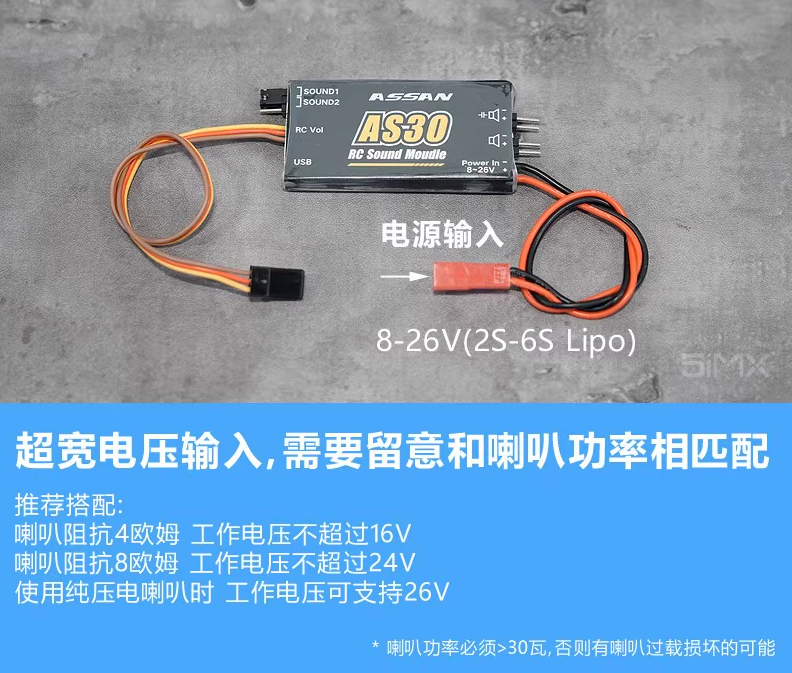

Ultra-wide voltage input, need to pay attention to match with the speaker power
Recommended combination:
Speaker impedance 4 ohms: working voltage does not exceed 16V Speaker impedance 8 ohms working voltage does not exceed 24V When using pure piezoelectric speakers, the working voltage can support 26V
Speaker power must be >30 watts,otherwise there is a possibility of speaker overload damage

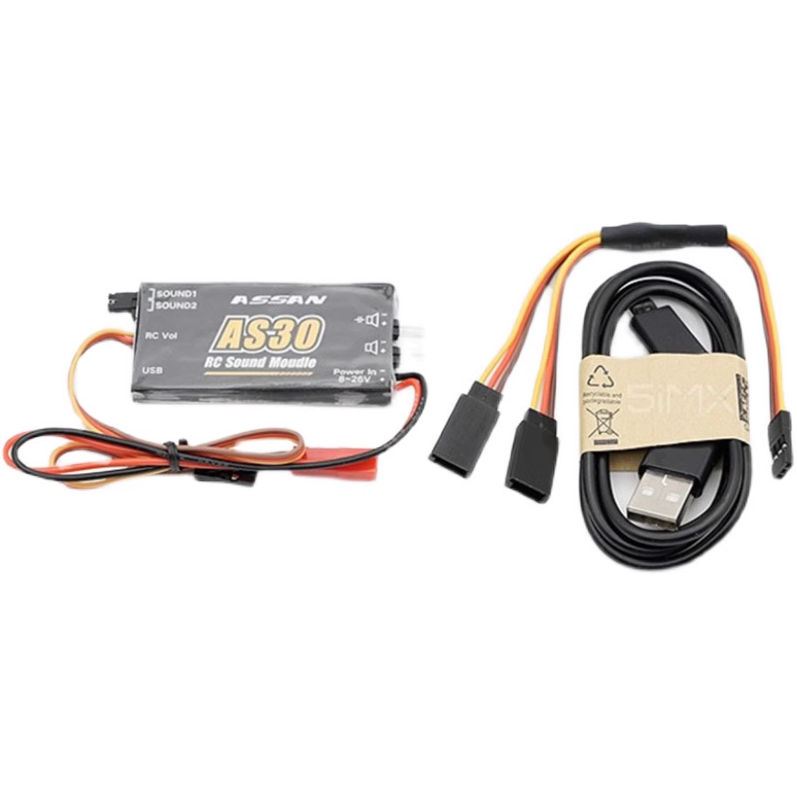

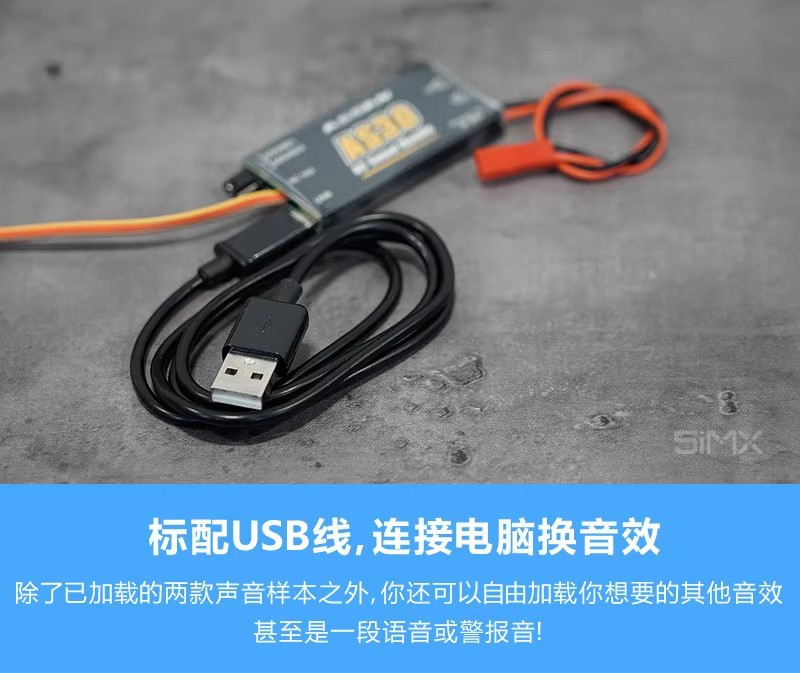

A USB cable is included to connect to a computer to change the sound effects.
In addition to the two sound samples that have been loaded, you can also freely load other sound effects you want or even a voice or alarm sound!
