Product Description

Dynam Detrum IstoneAcro 6-AXIS Gyro & Stabilizer for Airplane



Introduction



ISTONE-A ACRO is a 6-axis Gyro & Stabilizer for airplane, suitable for normal wing, fly-wing, and V-tail airplanes.

It is used to connect with the receiver to control the flight, supports Gyro Off, Normal, and Aerobatic modes, compatible with S.BUS and PWM receivers. You can set the programmable items via SET button and LEDs.



Features



  • - 32-bit high-performance ARM MCU, 6-axis sensor chipset

  • - Original attitude stabilization algorithm and control algorithm

  • - Support normal wing, fly wing, and V-tail airplanes

  • - Support mode switch via MODE channel, can switch between different modes

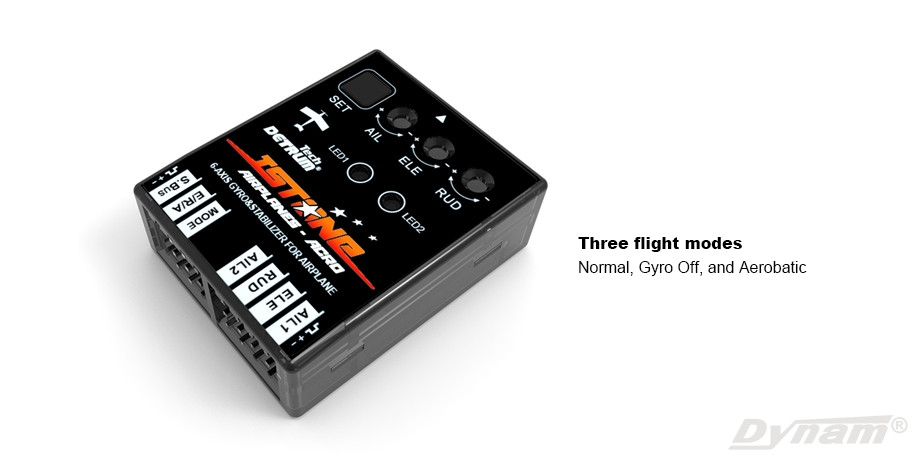

  • - Three flight modes: Gyro Off Mode, Normal Mode, and Aerobatic Mode

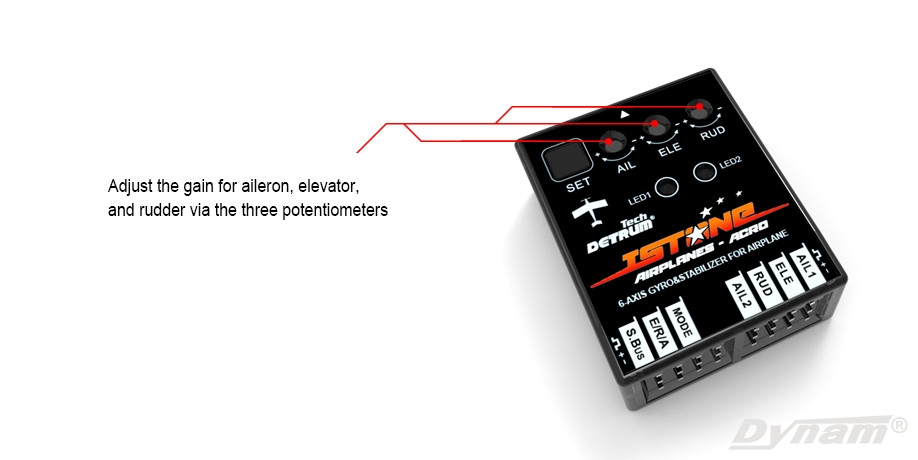

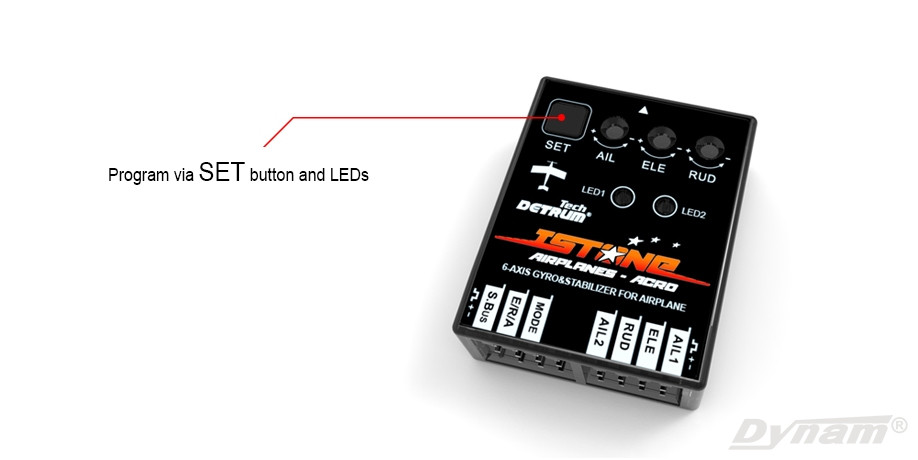

  • - Program via SET button and LEDs, adjust the gain for aileron, elevator, and rudder via three potentiometers

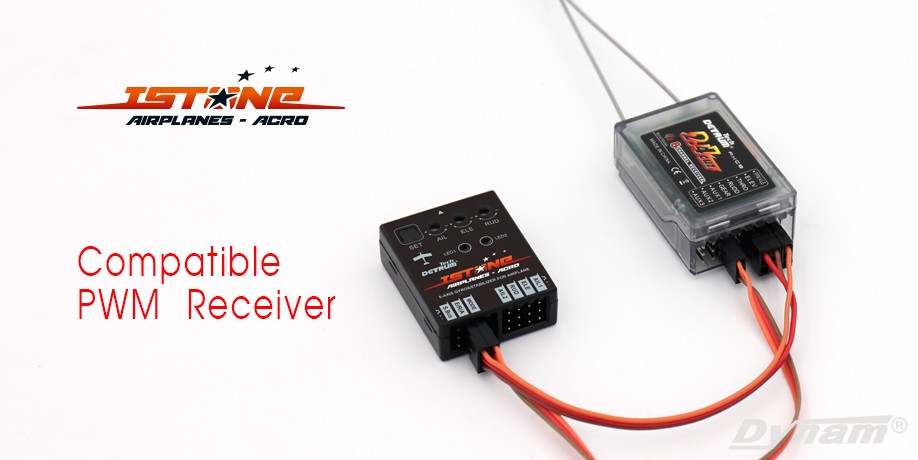

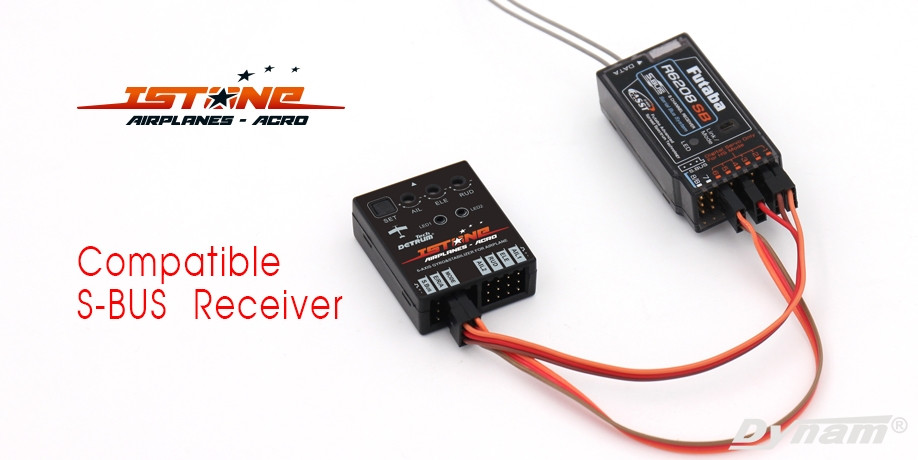

  • - Support S.BUS and PWM receivers

  • - Mini dimension, supporting different mounting directions (face up, down, left, and right)





Specifications



Main Controller: 32-bit MCU

Sensor: 6-axis gyro

Gyro Scale Range: -2000dps ~ +2000dps

Accelerometer Scale Range: -4g ~ +4g

Input Signal: PWM, S.BUS

Output Signal: PWM (71.4Hz)

Input Voltage: 4.8V ~ 7.4V

Operating Temp: -20℃ ~ 70℃

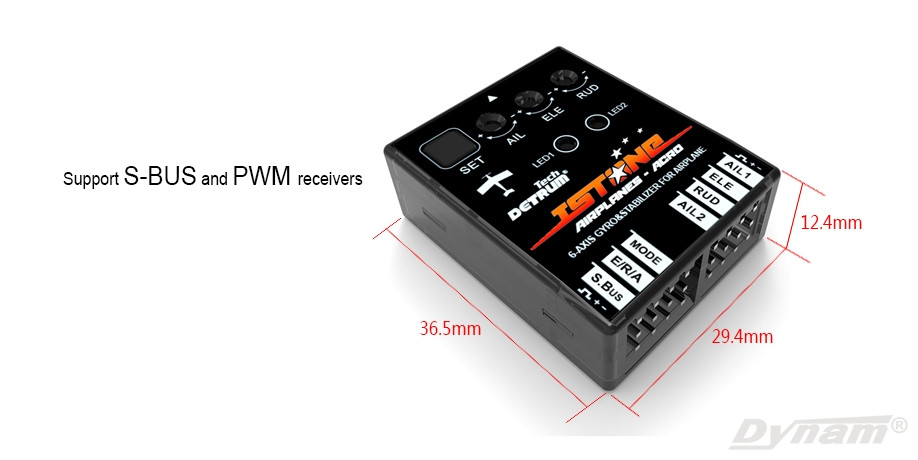

Size: 36.5mm*29.4mm*12.4mm

Weight: 11g



Packing List



ISTONE-A ACRO Gyro & Stabilizer ×1

3-signal wire ×1

Anti-shock double sided tape ×2

Single-signal wire ×1
