Product Description
Multi Chemistry Charger
SkyRC e450 Charger is an economic, high-quality 100-240V AC balance charger, designed for charging LiPo, LiFe and LiHV batteries from 2-4 cells in balance mode. It also can charge 6-8S NiMH batteries. The circuit power is 50W and max charge current can reach to 4A. There are four kinds of charge current 1A/2A/3A/4A that can be selected. You could select the proper charge. current according to battery capacity.
Specifications
| AC Input | 100-240V |
| Battery Type |
LiPo/LiFe/liHV/NiMH
|
| Cell Count | LiPo/LiFe/liHV:2-4S |
| Cell Count |
NiMH:6-8S
|
| Charge Current | 1A/2A/3A/4A ± 10% |
|
Circuit Power
|
50W |
| Current Drain for Balancing |
300mA
|
|
Weight
|
220g |

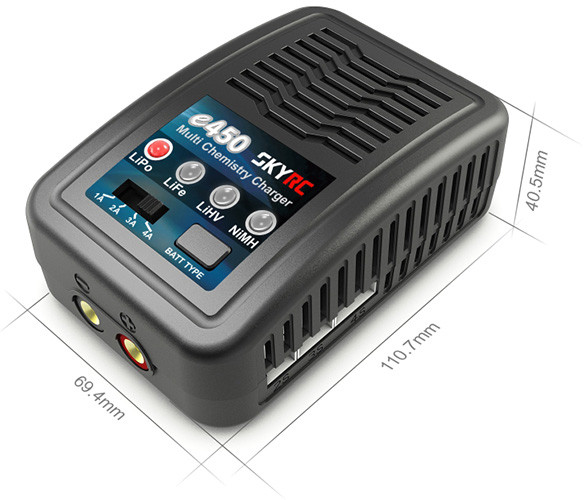

Size
Length ： 110.7mm
Width ： 69.4mm
Height ： 40.5mm
Width ： 69.4mm
Height ： 40.5mm
Explanation of LED Status
| LED green and red blinking | The charger is ready to charge |
| LED glows constant red | Battery capacity is less than 25% charged. |
| LED blinking red | Battery capacity is between 25% to 50% charged. |
| LED blinking yellow | Battery capacity is between 50% to 75% charged. |
| LED blinking green | Battery capacity is between 75% to 99%charged. |
| LED glows constant green | Battery is fully charged. |
What's in the box?
1*e450 Charger
1*AC Power Cord
1*XT60 Charging Cable
1*Instruction Manual
