Introduction

GAVIN-6C is a 2.4GHz 6-channel transmitter applicable for airplane, helicopter and multi-copter. Using low power devices leads to longer battery life. Support four stick modes to meet different operating habits. Support Trainer and Fail Safe functions which provide security for users. GAVIN-6C could provide the USB upgrade function and be used to set the programmable item of the flight controller for airplane.

MSR66A is a mini 6-channel 2.4GHz receiver integrated with 6-axis gyro and suitable for normal wing, fly-wing, and V-tail airplanes. It provides four different flight modes: Gyro off, Normal, Aerobatic, and Auto-Recovery (Auto Balance) and can be programmable from the matched transmitter.

All using the DSSS&FHSS dual spread spectrum technology,  will enhance the transmitter by increasing the anti-interference performance and transmission distance, even can controlled normally in city center, do not worry about the strong interference from high voltage lines, signal towers, city WiFi, etc.

Features

GAVIN-6C transmitter

- Applicable for airplane, helicopter and multi-copter.

- 30 model memory

- Adopting 2.4GHz direct sequence spread spectrum (DSSS) and multiple frequence-hopping spread spectrum (FHSS) technology, the R/C system has high receiving sensitivity and strong anti-interference capability, can support a stable operating for more than 1km on the ground and more than 1.6km in the air.

- Adopting wireless chips, with extended power amplifier (PA) and low noise amplifier (LNA) can extremely improve the system output power and receiving sensitivity.

- The transmitting efficiency is greatly improved by using all-band antenna on transmitter.

- Can experience a smooth flight operation by using the 4096 section precision sticks and selecting four stick modes.

- Using low power devices could reduce the transmitting power, also lead to low battery power consumption and longer battery life.

- USB upgrade function always keeps your GAVIN-6C the latest program.

- Support Fail Safe function, which could predefine the servo position by transmitter when receiver out of control.

- Trainer function make a skilled instructor can teach a student with fly skills.

- Can be used to set the programmable item of the flight controller for airplane.

-  low latency 2.6ms

MSR66A receiver

- 32-bit high-performance ARM core processor, 6-axis MEMS gyro chipset

- The size of MSR66A is super small (37*20mm), it is more suitable for small-scale aircraft which can fly in the park.

- Original airplane attitude stabilization algorithm and control algorithm. Support normal wing, fly wing, V-tail airplanes, and 3D planes.

- Four flight modes: Gyro off, Normal, Aerobatic, and Auto-Recovery (Auto Balance). You can switch between different modes by the toggle switch.

- Set the gain and other programmable items with matched transmitter or program card.

- MSR66A adopts 2.4GHz direct sequence spread spectrum (DSSS) and multiple frequency-hopping (FHSS) technologies, having high receiving sensitivity and strong anti-interference capability.

- By using diversity antenna, combined with the signal detection and switching algorithm, the receiving signal is stable and reliable.

- Once the binding is made, the ID code is stored in the receiver and no further binding is necessary after restarting the receiver.

- If the aircraft flies out of the remote control range and cannot receive a valid RF signal from the transmitter, MSR66A’s outputs can be driven to their preset failsafe positions.

- Support 6-channel PWM

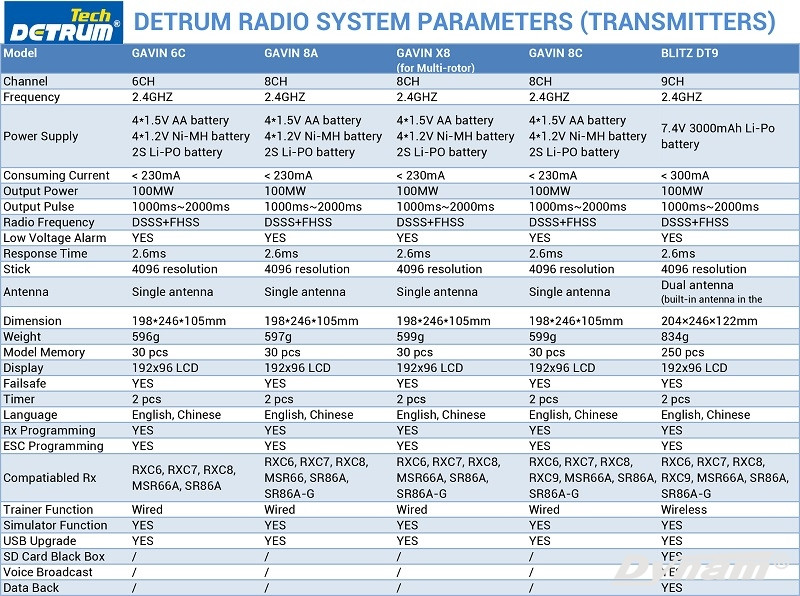

Specifications

GAVIN-6C transmitter

Channel: 6-channel

Transmitting frequency: 2.4GHz

Spread spectrum: DSSS&FHSS

Power supply: AA batteries 4*1.5V, Ni-MH batteries 4*1.2V, 2S Li-Po

Consuming current: less than or equal to 120mA (test mode); less than or equal to 230mA (Operating mode).

Output power: 10mW (test mode); 100mW (Operating mode).

Output pulse: 1000ms~2000ms (neutral 1500ms)

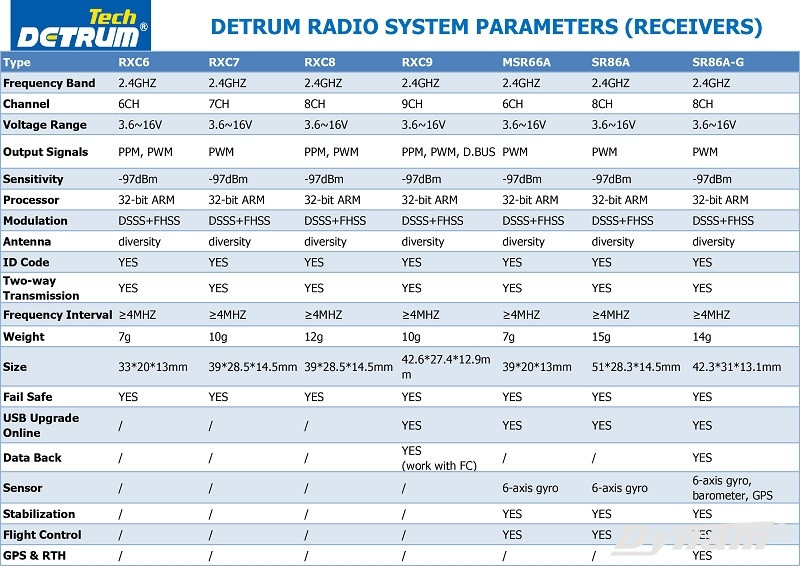

MSR66A receiver

Dimension: 37*20*13mm

Weight: 7.0g

Frequency: 2.4GHz

Communication Distance: ＞1.1Km

Power Supply: 3.6V~16V

Output Signal: PWM

Packing lists

GAVIN-6C transmitter  ×1

MSR66A receiver  ×1

Bind Plug  ×1

Introduction Manual  ×1
