HobbyWing EZRUN SL 4985 1650KV / 5687 1100KV / 56113 800KV 3-8S 4-pole Sensorless Brushless Motor for 1/5 1/6 1/7 RC car

  • Image 1
  • Image 2
  • Image 3
  • Image 4
  • Image 5
  • Image 6
  • Image 7
  • Image 8
  • Image 9
  • Image 10
  • Image 11
  • Image 12
  • Image 13
  • Image 14
  • Image 15
Price:
£94.47
Brand:
Weight:
0.70 KGS
Shipping:
Calculated at checkout
Quantity:


Product Description

RC Motor,HobbyWing EZRUN SL 4985-1650KV/5687-1100KV/56113-800KV 3-8S 4-pole Sensorless Brushless Motor for 1/5 1/6 1/7 RC car



Features:

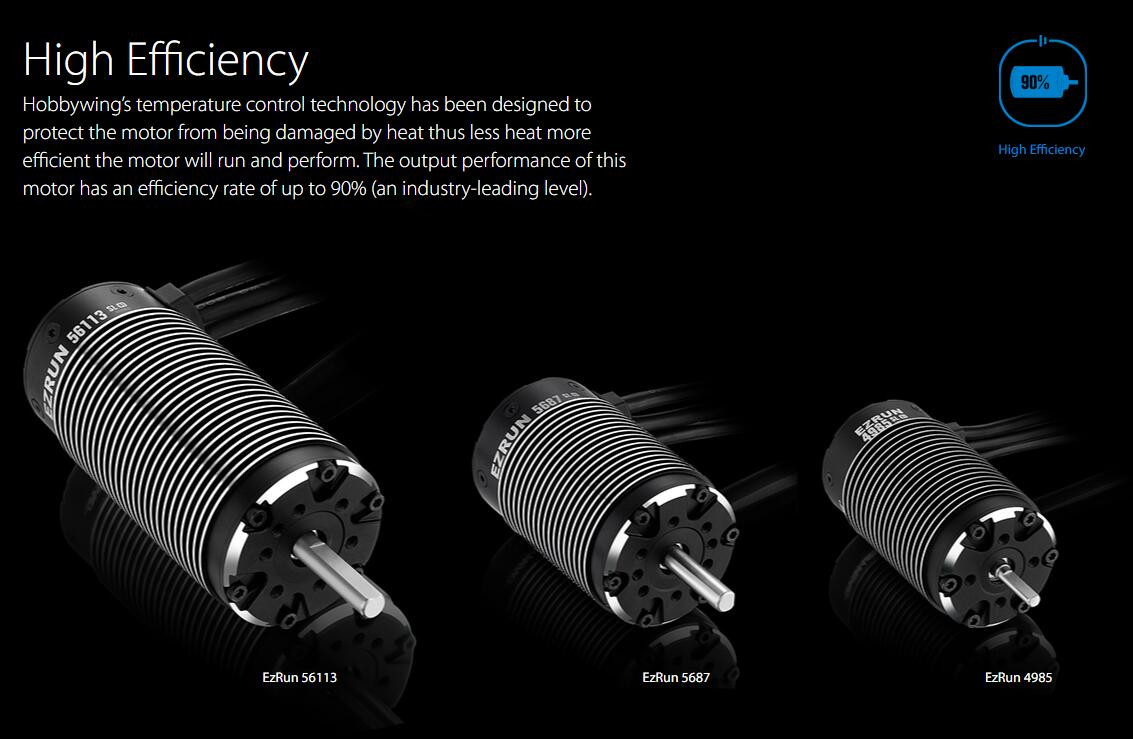

• 4 pole rotor for high torque, fast acceleration response and stable power output. • Special technology for temperature control implemented by this motor guarantees less heat more efficiency (efficiency rate of up to 90%).

• CNC machined aluminum housing, high purity copper windings,advanced rotor structure,0.2mm silicon steel laminations,high-quality stainless steel output shaft, high-precision bearings for high durability and smoothness.

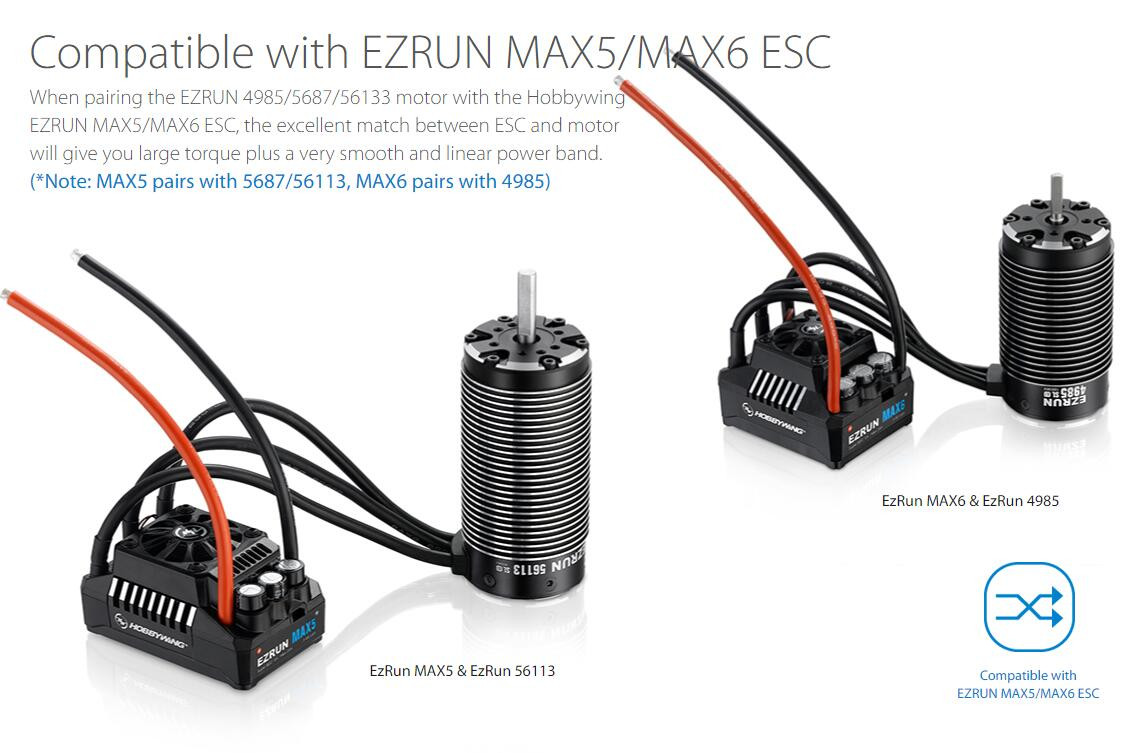

• Rebuild-able design (partially rebuild-able) for routine maintenance effectively prolongs the motor life and raises the motor efficiency. • This EZRUN motor is a perfect match for the HOBBYWING EZRUN MAX6/5 ESC.

• Temperature sensor port provides all-round protection to the power system (Hobbywing will develop some ESCs with the motor thermal protection function to pair these motors in future).



HobbyWing EZRUN 56113SL-800KV Motor:
KV:800
Lipos:3-8S
Resistance(Ω):0.0049
No-load Current:3.2
Operating Current(A):200
Output Power(W):5800
O.D./Length(mm):φ=56mm(2.2In)/L=113mm(4.45In)
Shaft Diameter/Length(mm):φ=8.0mm(0.31In)/L=31mm(1.22In)
Poles:4
Weight(g):1210g(42.68oz)
Applications: Heavy load 8S 1/5 RC Car



HobbyWing EZRUN 5687SL-1100KV Motor:
KV:1100
Lipos:3-8S
Resistance(Ω):0.0041
No-load Current:4.1
Operating Current(A):200
Output Power(W):5800
O.D./Length(mm):φ=56mm(2.2In)/L=87mm(3.43In)
Shaft Diameter/Length(mm):φ=8.0mm(0.31In)/L=31mm(1.22In)
Poles:4
Weight(g):916g(32.31oz)
Applications:1/5 8S Light-Duty & 1/6 8S RC Heavy Load Vehicles



HobbyWing EZRUN 4985SL-1650KV Motor:
KV:1650
Lipos:3-6S
Resistance(Ω):0.0053
No-load Current:5.4
Operating Current(A):160
Output Power(W):5700
O.D./Length(mm):φ=49mm(1.92In)/L=86.5mm(3.41In)
Shaft Diameter/Length(mm):φ=5.0mm(0.3In)/L=21.5mm(0.85In)
Poles:4
Weight(g):587g(20.71oz)
Applications: Light load 6S 1/6 & 1/7 RC Vehicles
