OMG Competition Level Full Metal Brushless Digital 40KG servo OMG-A4-40BF for rc plane,turbine jet,and 1/10 rc crawler,truck,etc

  • Image 1
  • Image 2
  • Image 3
Price:
$115.00
SKU:
OMG-A4-40BF
Brand:
Weight:
0.15 KGS
Shipping:
Free Shipping
Quantity:


Product Description

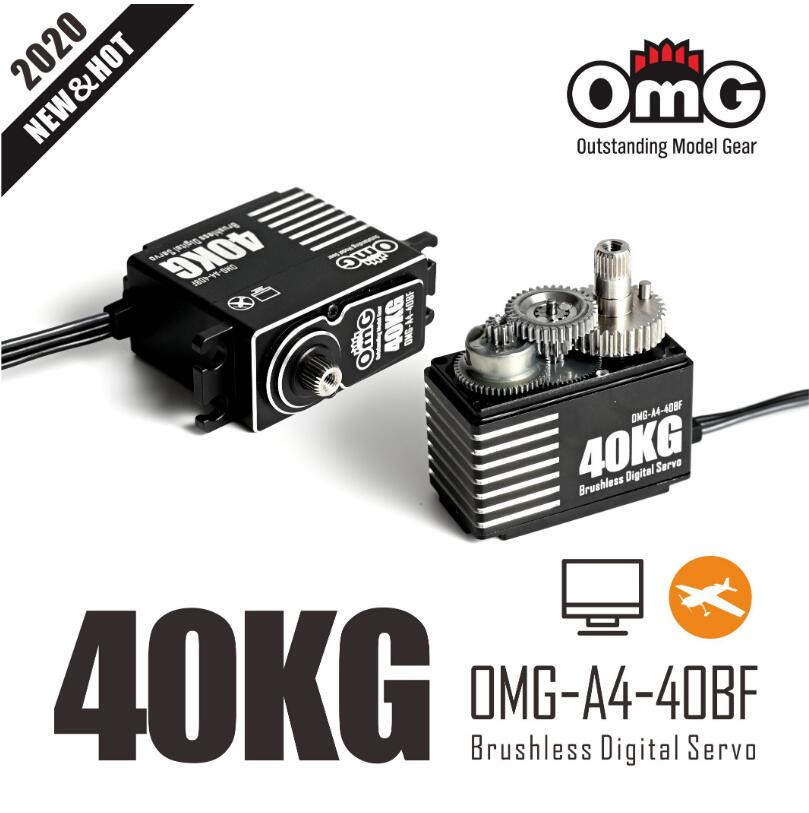

OMG Competition Level Full Metal Brushless Digital 40KG servo OMG-A4-40BF



Application:

Fit in rc plane, turbine jet, and 1/10 rc crawler, truck, etc (except 1/10, 1/8 buggy) Competition Level



Overview

All-metal brushless motor high-pressure digital standard steering gear, a product specially developed for large fixed-wing aircraft, can adjust various parameters, has a slow start function, and stainless steel gears.



Specification:

Working voltage: 4.8-8.4V

The fastest speed:

7.4V-0.078sec/60°

8.4V-0.065sec/60°



Locked-rotor torque:

7.4V-38kg-cm/(528oz-in)

8.4V-40kg-cm/(556oz-in)

Output gear: 25T

Product size: 40x20x38mm

Product weight: 79g

Operating stroke: 180±10°(500-2500μsec)

Rotation direction: 180°(1000-2000μsec)

Angle limit: 220

Neutral point: 1520μsec

Maximum stroke: ≈180°(500-2500μsec)

Pulse width range: 500-2500μsec

Death drive pulse width: 2μsec

Wire length: JR360mm

Wire model: #22PVC
