Product Description

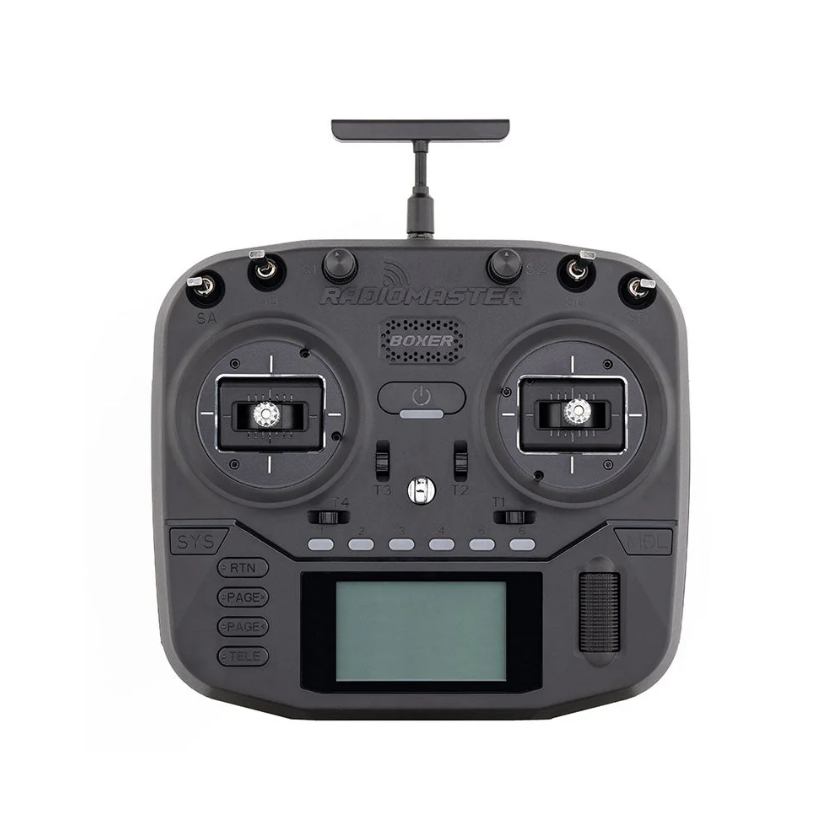

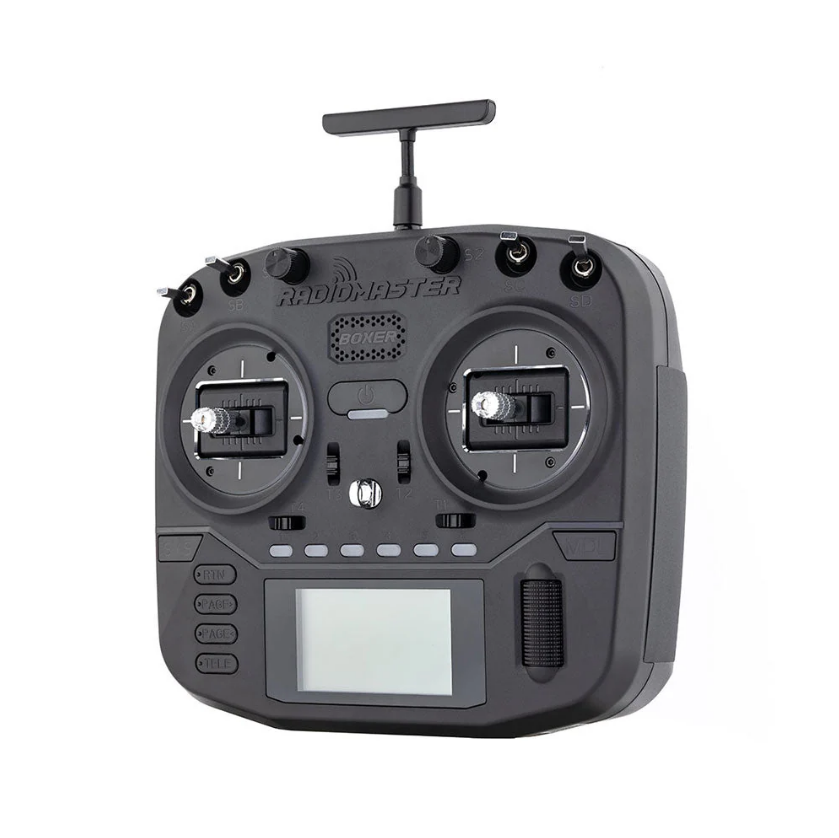

Radiomaster Boxer Radio Controller (M2)
The perfect combination of size and ergonomics make the BOXER an ideal choice. Featuring full size hall effect gimbals for precision control and an intuitive button layout, the BOXER gives you a compact radio without compromising on comfort and function.
Features
- Available with built-in ExpressLRS Backpack or 4-in-1/CC2500 MPM RF modules
- Featuring a powerful STM32F407VGT6 with 1MB Flash and 192KB RAM
- Preinstalled EdgeTX firmware
- Internal ELRS module capable of 1,000Hz refresh rate
- QC3.0 fast charging support 2.0A MAX
- Compact design with excellent ergonomics
- New low-profile latching SE switch and momentary SF switch

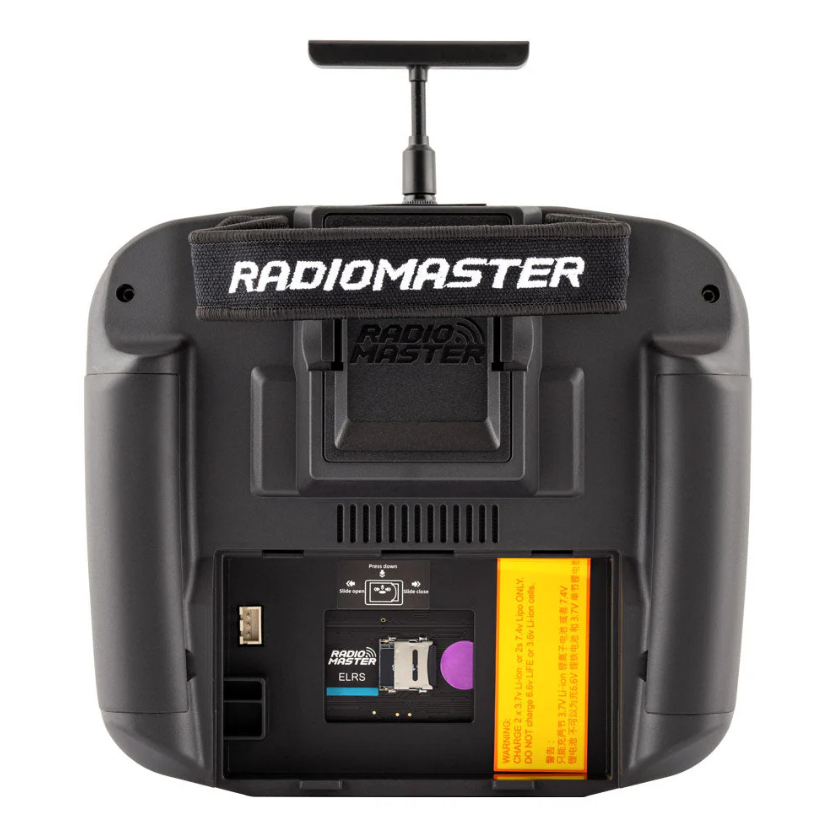

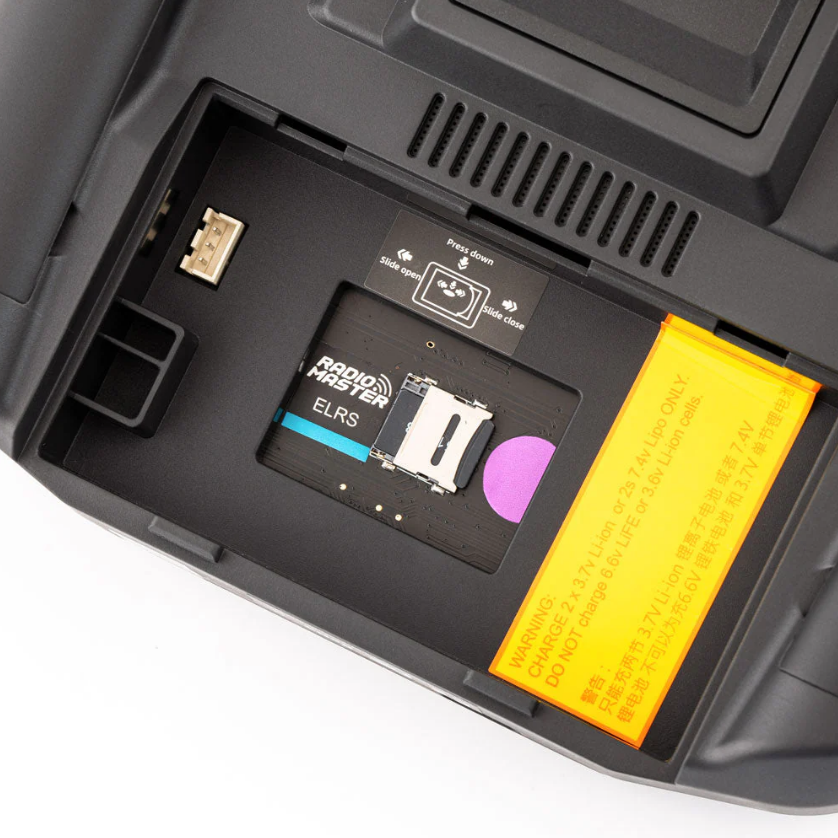

- Oversized battery compartment- Space for a 2S 6200mAh pack, up to 20-hour duration (Batteries not included)
- Full sized V4.0 Hall effect gimbals as standard, upgradable to AG01 CNC Hall effect gimbals
- Standard JR module compartment
- Internal module cooling fan built in (ELRS version)
- RadioMaster standardized button layout
- Versatile programable 6-position switch
- Adjustable and Removable T-shape Antenna
- Industry first fabric handle for improved portability
- Changeable, ergonomic grips
- Redesigned SD card slot with pre-loaded SD card included
- External module power slots in battery cover
- RadioMaster signature carry case and gimbal protector are included as standard to ensure your radio stays safe while on the move
Specification
- Item: BOXER Radio
- Size: 235*178*77mm
- Weight: 532.5g
- Frequency: 2.400GHz-2.480GHz
- Internal RF Options: CC2500 multi-protocol / 4-in-1 multi-protocol / ELRS 2.4GHz
- Supported protocols: Module dependent
- Voltage Range: 6.6-8.4V DC
- Radio Firmware: EdgeTX (Transmitter) / Multi-Module (RF module) / ELRS
- Channels: Max 16 channels (Receiver dependent)
- Battery: 7.4V 2-cell Lithium-Polymer / Two 3.7V 18650 Lithium-Ion cells (batteries not included)
- Display: 128*64 Monochrome LCD display
- Gimbal: High precision 4.0 Hall gimbals as standard (AG01 Optional)
- Module Bay: JR-compatible module bay for additional modules
- Upgrade Method: USB/SD card & EdgeTX Companion PC software
EdgeTX Operating System
Preinstalled with EdgeTX, the BOXER has cutting edge software fit for its class-leading hardware. RadioMaster works closely with the EdgeTX team to develop features and optimize the user experience. We will continue to contribute and support projects like EdgeTX, ensuring the concepts of open standards are carried forward.
Available with ExpressLRS and 4in1/CC2500 Version
In addition to the popular internal 4-in-1 Multi-module (CC2500, NRF24L01, A7105 and CYRF6936) and the CC2500 only version, the BOXER is now also available with a high-power, fan cooled, default 100mW internal 2.4GHz ExpressLRS (ELRS) module. Designed to provide reliable long-distance control, minimal latency, and high refresh rates. ELRS is a revolutionary open-source protocol taking the R/C industry by storm.
FCC Version and EU LBT Version are Available
Currently, we provide the standard FCC version and the EU LBT version. Please check the supported protocols below.
Standard FCC Version
- CC2500 (FCC) Version supports all CC2500 protocols
- 4in1 (FCC) Version supports all MPM protocols
- ELRS (FCC) is pre-installed with ExpressLRS ISM FW (Max power is hardware dependant)
EU LBT Version
- CC2500 LBT Version (Europe) is limited to LBT compliant protocols FrSKY X/X2 LBT & HoTT LBT
- 4in1 LBT Version (Europe) is limited to LBT compliant protocols FrSKY X/X2 LBT, HoTT LBT and DSMX
- ELRS LBT (Europe) Version is pre-installed with ExpressLRS CE EU domain LBT FW (Limited to 100mw power output)
Powerful STM32VGT6 Processor with 1MB Flash
Compact Design with Excellent Ergonomics
Dimensions
Radio Overview

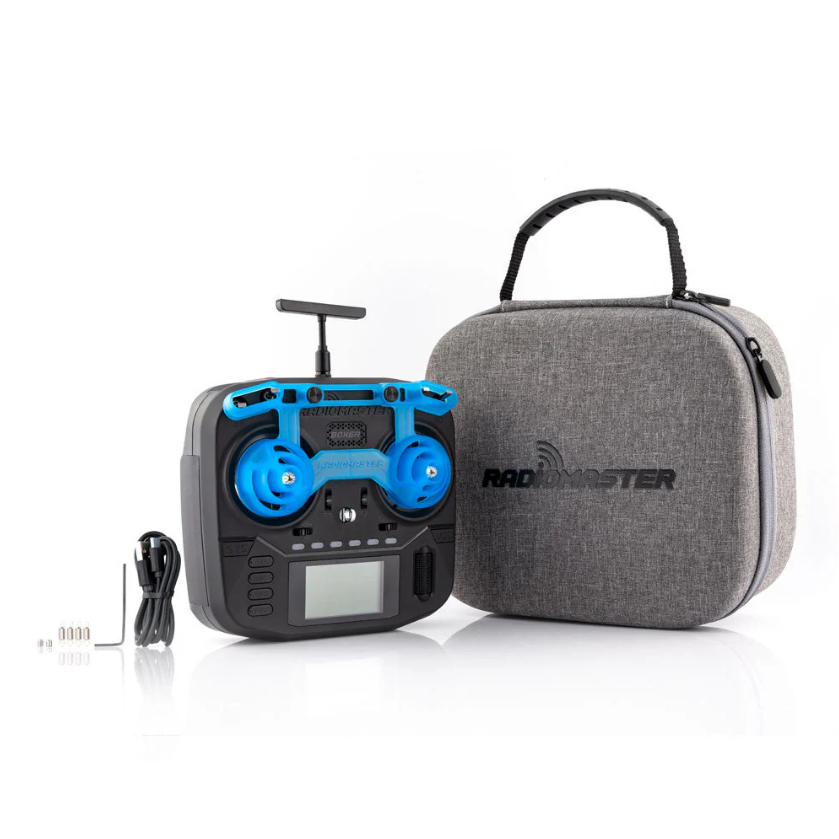

Package Includes
- 1 * BOXER Radio
- 1 * Signature Carry Case
- 1 * T Antenna
- 1 * USB-C Cable
- 1 * Gimbal Protector
- 1 * 1.5mm Allen Key
- 2 * M4*4 Screws
- 4 * Low Tension Springs
- 1 * 18650 Battery Tray
- 1 * Stickers
- 1 * Manual
Boxer Radio is now compatible with mLRS!
The mLRS project offers an open-source, high-performance radio system based on LoRa technology, operating at 2.4 GHz, 915/868 MHz, and 433 MHz/70 cm, designed to deliver a secure, reliable, and robust link under any conditions.
mLRS is designed with MAVLink and MSP optimization in mind, while also providing a transparent serial link, making it suitable for a wide range of applications. Its design ensures the strongest possible signal integrity while maintaining a relatively high data rate, balancing performance and reliability without compromise.
Radiomaster is proud to be an EdgeTX Gold Partner and to have played a pivotal role in the inception of the EdgeTX project. Our commitment goes far beyond just producing radios that run on EdgeTX; we are actively collaborating with the EdgeTX team to drive innovation and help shape the future of EdgeTX based technology.
